FasCard POS Payment Integration

Part 1: Find Location ID in FasCard

Log in to FasCard’s admin site. Click the System tab. Find the Location ID in the ID column of the store where your POS computer is installed. Write down the Location ID for later reference.

Part 2: Create an API User Account in FasCard

Click the Users tab. Scroll to the bottom of the list of users and click the Add New API User button.

Select the Location for this integration. No other special configuration is needed. Click the Save (and generate password) button.

A password will be automatically generated. Write down the API User's email address and generated password for later reference. Do not navigate away from this screen until you have done so.

Part 3: Create POS Equipment Type & New POS Machine in FasCard

Click the Setup tab and then the Equipment Types sub-tab. Scroll to the bottom of the list of equipment types and click the Add New button.

Select Point-of-Sale from the New Equip Type dropdown that appears. Click the Save button.

While still on the Setup tab, click the Machines sub-tab. Click the Add New button at the top of the list of machines.

The new machine must have a unique Machine Number and Point-of-Sale selected in the Equipment Name dropdown. Installed Date and Last Service Date are also required fields, but they will already be filled in with the current date. No other configuration is needed.

Click the Save button. Write down the Machine Number for later reference.

Part 4: Enter Credentials into Wash-Dry-Fold POS

Click the gear icon in the top right corner of any page in Wash-Dry-Fold POS. Select Store Settings from the options that appear.

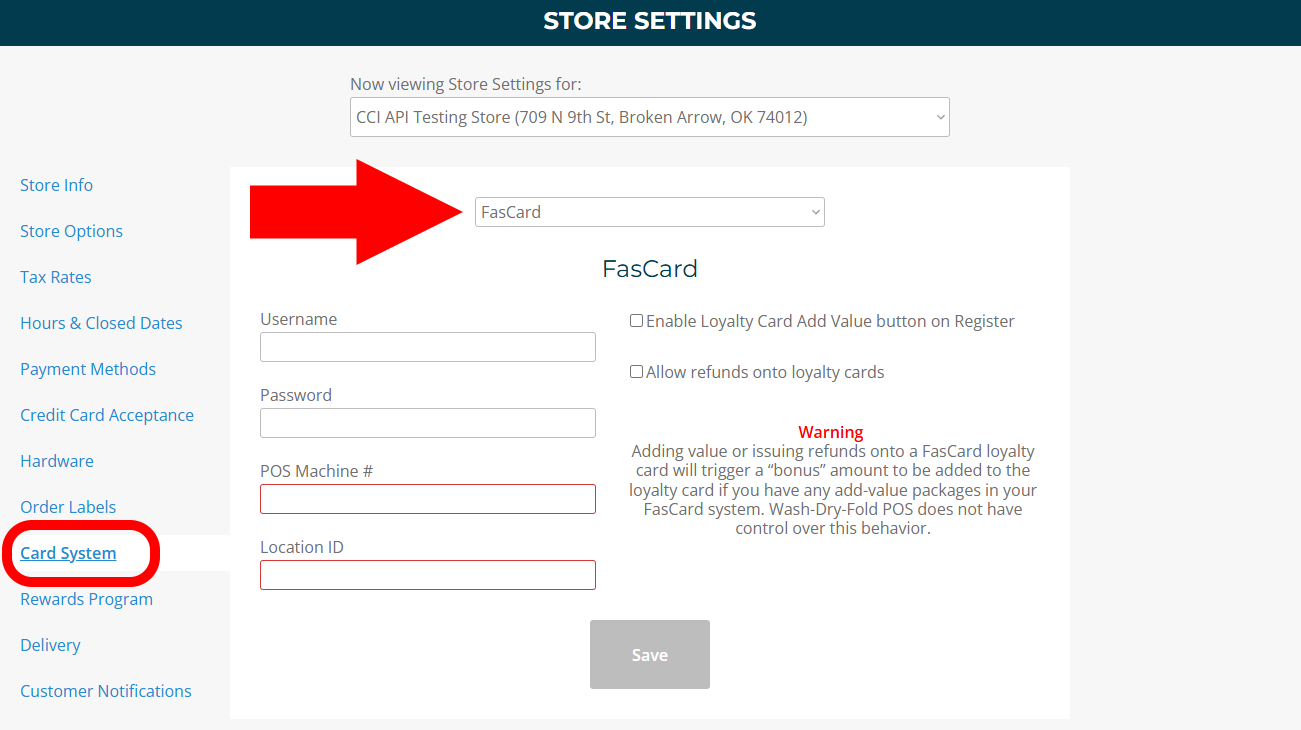

Click the Card System tab. Select FasCard from the dropdown menu.

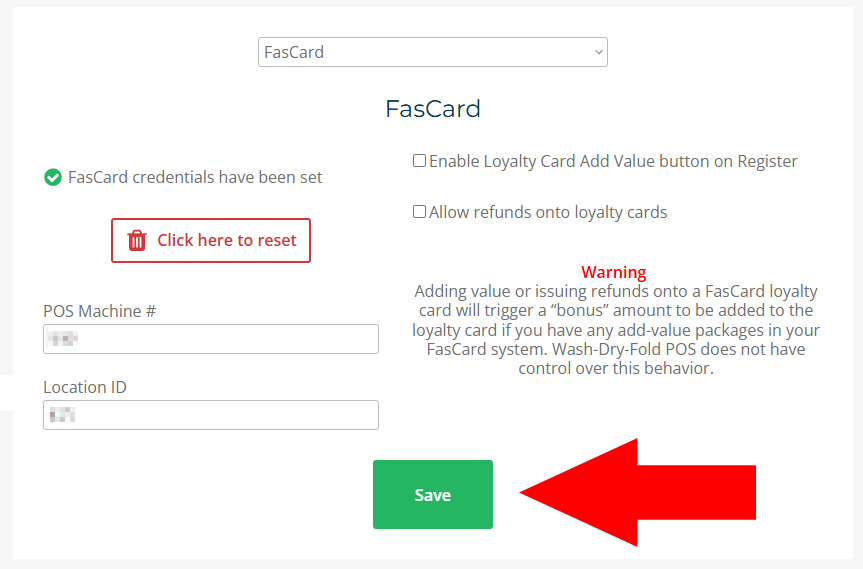

Enter all the information you collected and wrote down from the FasCard admin site. Click the Save button, and you are done!
